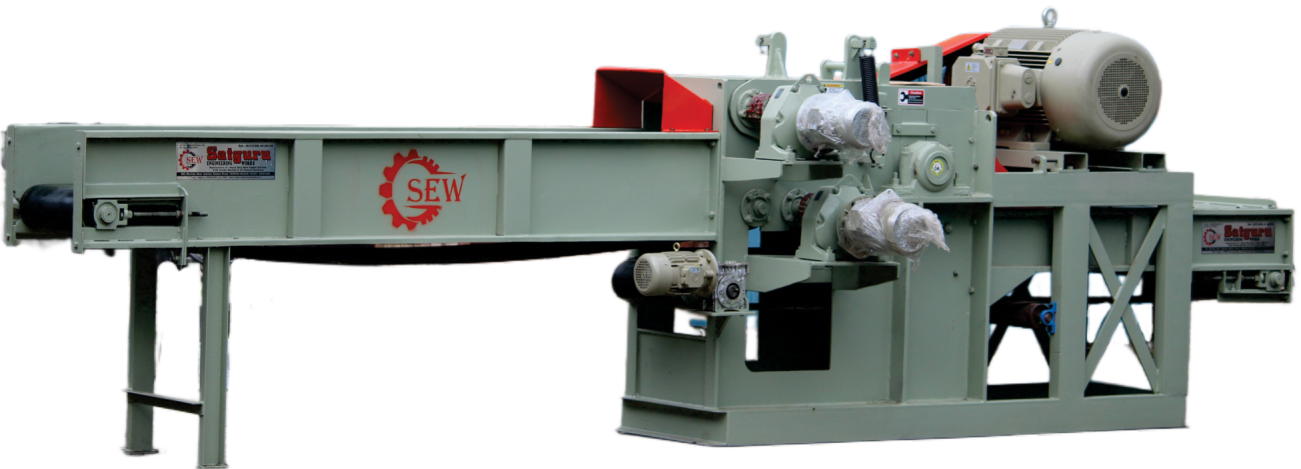

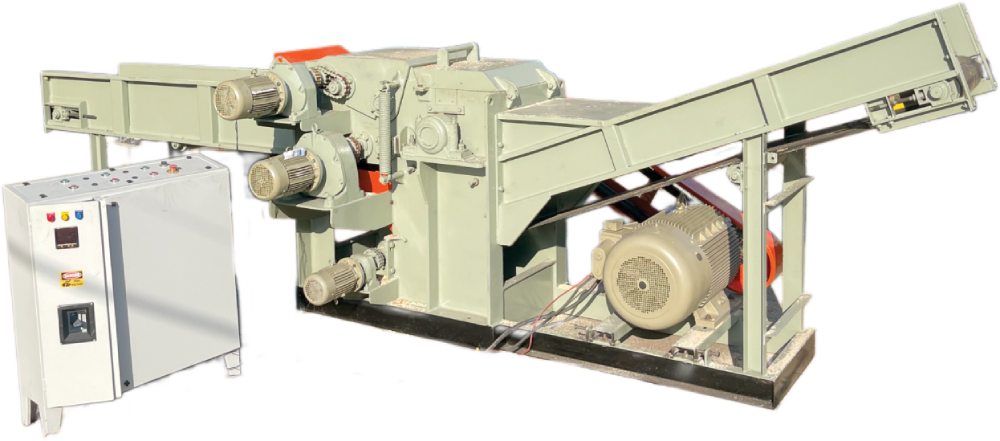

Wood Saw Dust Machine

A Wood Saw Dust Machine is a type of machinery designed to convert raw wood materials (such as logs, branches, and wood waste) into fine sawdust. This sawdust can be used for various purposes, including briquette production, biomass fuel, animal bedding, or composting. These machines are widely used in wood processing, furniture production, paper industries, and biomass energy sectors.

BUILT FOR PERFORMANCE

Our wood processing machines are designed for powerful operation, handling wood waste efficiently while delivering consistent output, durability, and reliable performance for various industrial applications.

TECHNICAL SPECIFICATIONS

SR NO.	MODEL'S	PRODUCTION TPH (TON PER HOUR)	OUTPUT SIZE (CUSTOMIZED)	INPUT SIZE Ø DIA IN MM	ENGINE LOAD
SR NO.	MODEL'S	PRODUCTION TPH (TON PER HOUR)	OUTPUT SIZE (CUSTOMIZED)	INPUT SIZE Ø DIA IN MM	HP/RPM	NOS.
1.	SD20	1-2 TPH	0-5MM ©	25-180MM	60 HP 960 RPM	1 NOS
					3 HP 960 RPM	1 NOS
					3 HP 960 RPM	1 NOS
					3 HP 1440 RPM	1 NOS
					TOTAL LOAD	70 HP
2.	SD30	2-3 TPH	0-5MM ©	25-304MM	100 HP 960 RPM	1 NOS
					3 HP 960 RPM	1 NOS
					5 HP 960 RPM	1 NOS
					5 HP 1440 RPM	1 NOS
					TOTAL LOAD	115 HP
